Trek Emonda SLR 10

Trek Emonda SLR 10
$14,999.99
Size: Select size
Please select options Unavailable
Sorry, this item is currently not available. Please check back.

Details

This bike weighs 10.25 pounds. 10.25 pounds! Miraculously, that only tells part of the story. The ride quality is like nothing you've ever experienced. Trek's heralded OCLV carbon provides the smoothness, the stiffness, that "feel" — it has to be ridden to be believed. The geometry is modeled using direct feedback from racers for the crisp handling and tight cornering that both pros and amateurs crave. Aggressive yet stable, quick yet confident, no one does race bikes like Trek, and they have the wins to prove it. In addition to the incredible 690 gram frame, the lightness is achieved with a careful selection of parts. The Tune wheels, seen under Tour de France winners, are 25mm deep tubulars that weigh 825 grams. That's for the pair! The Bontrager bar/stem combo saves 75 grams over a traditional set up, yet retains the same stiffness. A full carbon saddle, ceramic bearings, and Jagwire housing shave off grams as well. Even the brakes are custom Bontys that are super light yet super powerful and shifting duty is expertly handled by SRAM RED 11-speed. More than just the sum of its parts, the Emonda SLR 10 is the pinnacle of lightweight, no-compromise performance. This changes everything, are you ready?

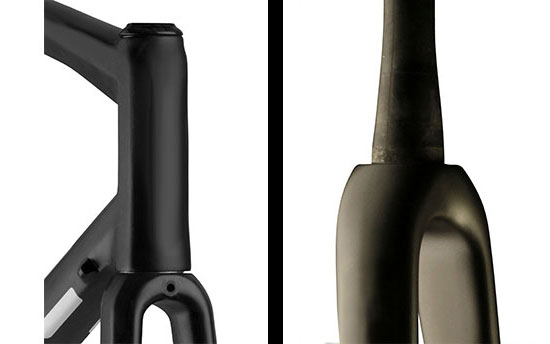

Tapered head tube and fork.For increased stiffness and improved steering precision, tapered head tubes (see image, on left) and forks pair an oversize lower steerer tube (usually 1 1/2-inch, see image, on right) with a standard diameter upper steerer tube (usually 1 1/8-inch). This combination sheds weight compared to straight 1 1/2-inch systems, and adds stability and stiffness when compared to straight 1 1/8-inch systems. The result is a bike that tracks better through corners while allowing for the use of standard stems.

Trek's Emonda features a unique bottom bracket (image, right) that's 90mm wide (traditional ones are 68mm wide). This wide bottom bracket lets Trek build the frame with larger tubes for increased power transfer. Plus, the 90mm bottom bracket is machined so that the bearings can be placed directly into the frame (image) saving weight (due to fewer parts), ensuring additional pedaling efficiency and simplifying maintenance and repair.

Specs

Frame Trek 700 Series OCLV Carbon w/E2, BB90
Fork Trek Emonda SLR carbon
Rims/Wheels Tune Skyline carbon tubular
Hubs Front: Tune MIG45; Rear, MAG150
Spokes Sapim CX Ray
Tires Vittoria Crono CS, 700 x 22c
Crankset SRAM RED
Chainrings SRAM RED 50/34
Front Derailleur SRAM RED 22
Rear Derailleur SRAM RED 22
Rear Cogs SRAM RED X-Glide 1190, 11-speed, 11-25
Shifters SRAM RED 22
Handlebars Bontrager XXX integrated bar/stem
Tape/Grips Bontrager
Stem Bontrager XXX integrated bar/stem
Brake Levers SRAM RED 22
Brakes Bontrager Speed Stop
Saddle Tune Komm-Vor Plus, w/carbon body and rails
Seatpost Bontrager SLR Ride-Tuned Carbon seatmast cap
Accessories & Extras Chain keeper

* Subject to change without notice.

Videos

Building the unthinkable

Part Numbers

Option UPC MPN
50cm 768682921425 506980
52cm 768682921432 506981
54cm 768682921449 506982
56cm 768682921456 506983
58cm 768682921463 506984
60cm 768682921470 506985
62cm 768682921487 506986
